WSO2 Products - HTTP Access Logging (create a log file without including timestamp)

You can use access logs to investigate the entries for service and REST API invocations and for Management Console access. Access logs are helpful to monitor your application's usage activities, such as the persons who access it, how many hits it receives, what the errors and many more.

These information is useful when troubleshooting happens.

In WSO2 products you can customize the http access log configuration by editing the catalina-server.xml which is located

<PRODUCT_HOME>/repository/conf/tomcat/catalina-server.xml

 As the runtime of WSO2 products are based on Apache Tomcat, you can use the Access_Log_Valve variable in Tomcat 7 as explained below to configure HTTP access logs in WSO2 products. In addition, you can customize the access logs based on the supported Access Log Valve attributes.

Create access.log  without appending Date in to the file name

By default Tomcat server will create a log file with including timestamp.

When the server is running on next day, it will create a new log file.

The objective of this default behavior is to avoid issues when the log file eventually becomes larger. But when you set the rotatable property to "false", it will disable this default behavior and use a single log file.

We can  change this behavior by configuring either the "rotatable" parameter or "renameOnRotate" parameter in access-log valve section of catalina-server.xml as below. Make sure to change the prefix property as "http_access".

• Using "rotatable" property

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="$
{carbon.home}/repository/logs"
prefix="http_access" suffix=".log"
pattern="combined" rotatable="false"/>

• Using "renameOnRotate" property

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="${carbon.home}
/repository/logs"
prefix="http_access" suffix=".log"
pattern="combined" renameOnRotate="true"/>

By setting the renameOnRotate property to "true", tomcat server will not include a timestamp to the log file. So Tomcat will use "http-access.log" file for logging.

 But it'll rename it to include the timestamp when the rotation happens (at the beginning of the next day) and create a new http-access.log file for logging.


During rotation the file is closed and a new file with the next timestamp in the name is created and used. When setting renameOnRotate to true, the timestamp is no longer part of the active log file name. Only during rotation the file is closed and then renamed to include the timestamp.

This is similar to the behavior of most log frameworks when doing time based rotation."

Read More

WSO2 Data Analytics Server 3.1.0 : How to apply your own custom theme for per dashboard

In Data Analytics server we can deploy a custom theme using a carbon archive file. so we can select a custom theme for each dashboard out of these deployed custom themes. (If we don’t want a custom theme, can use the default theme)

Here in this post I will provide high level instructions for change the look and feel of Dashboards.

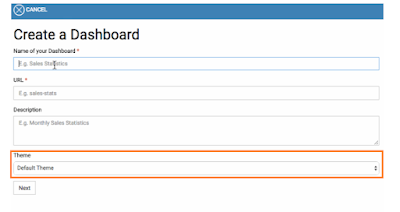

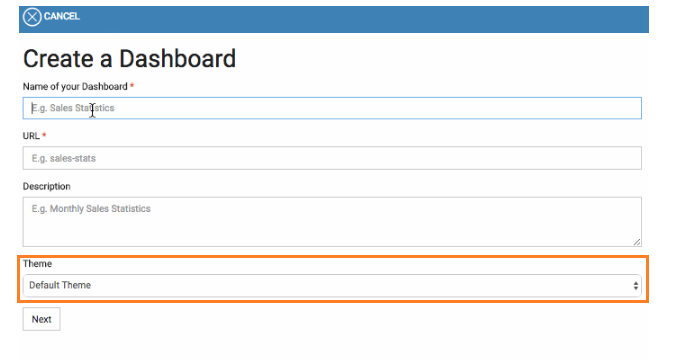

When you are Log into the Analytics Dashboard and opens create dashboard icon you will navigate to create dashboard page. In there you will see a option call “theme”(figure 1.0) you will notice there are no options default theme is the only available theme, but when you create your own themes you could able to see those themes in there and can apply them accordingly when you are about to create dashboard.

Figure 1.0

Please note through this feature, you are allowed to add a custom theme only for the view of the dashboard. you can add your own script files, template files and styles to customize the view of a particular dashboard accordingly.

Here are the steps that you have to carry out

Step 01

Create a custom theme file

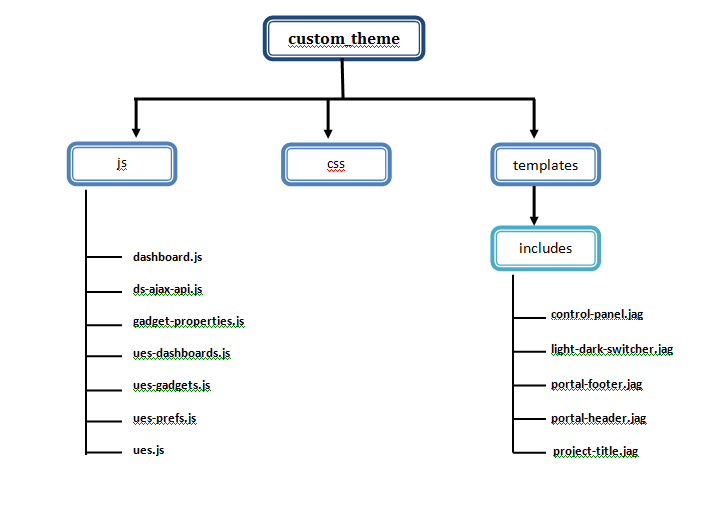

When it is a creating custom theme you need to maintain folder structure as follows(figure 2.0).

figure 2.0

You might be confused where could I find these jaggery files J  no worries  You can find the JavaScript files by navigating through

 <DAS-HOME>/repository/deployment/server/jaggeryapps/portal/ js

jaggery files(.jag files) you can find on location of

<DAS-HOME>/repository/deployment/server/jaggeryapps/portal/theme/templates/includes

Note:

‘css’ folder can contain any style sheets with the extension of .css. But the ‘js’ and ‘template’ folders should contain the file naming as defined in the above structure.

Step 02

As I mentioned in above step you have to create custom them file (According to my example i named it as “custom_theme”) according  to your requirement  and from that folder you need to create car file since custom theme file should be create as a carbon archive file which has the extension of .car.

While you creating the car file. you have to create car file manually (for creating car file in DAS server there is official documentation published by WSO2 you can find it here )

Please make sure to change the artifact type of the theme define as ‘dashboards/theme’. For example, the artifact.xml file for a custom theme is as follows.

<artifact name="custom_theme" version="1.0.0" type="carbon/application">
<dependency artifact="car" version="1.0.0" include="true" serverRole="DataAnalyticsServer"/>
</artifact>

 Step 03

Once you have created the carbon archive file for a custom theme successfully, you can deploy it through the carbon application deployer in admin console. To do that Log in to WSO2 DAS management console using admin/admin credentials.

figure 3.0

Click Main, and then click Add in the Carbon Applications menu Click Choose File and select the .car file that you created and upload.

 Step 04

Then navigate to the <IP address:port>/portal/dashboards and At the creation of a dashboard, the user can select the default or custom theme for that dashboard

figure 4.0

you can also change the theme of a dashboard, from the settings view of that dashboard. Once you select the new theme from the dropdown list, click save button to save the changes, Once you select or change the theme of a dashboard, you can use the dashboard view to see a preview of the final dashboard

Read More

WSO2 API Manager : Configure timeouts

A server connection timeout error does little to tell you what went wrong or why the error happened: it just identifies that the error occurred. Since Endpoints send the message out, they can encounter various transport errors. For example connection may time out, or connection may be closed by the actual service and even an Internet connection can be at fault.

Today we are talking how we can deal with Connection timed out errors in APIM.

Use-Case

Suppose a user is having a backend which is taking more than 5 -6 minutes to give a response back, The API that is waiting for backend response and will make timeout error after waiting 30000ms since exceeding of default value of the endpoint timeout by thinking connection may be closed by the actual service.

We can get over with this kind of situations by doing manual configurations inside the apim configurations.

There are 3 types of timeouts in API Manager

• Endpoint timeout/connection timeout in per API level
• Socket timeout
• Global timeout

1. When it’s needed to Set timeout in API level per each API you can go for following method. You can set the timeout value through management console for the API you want to increase the time out for 6 min.(60000miliseconds * 6 = 360000 ms)Please note that this configuration will override the "synapse.global_timeout_interval" value for that API



<api name="admin--Emailverification" context="/phoneverify" version="1.0.0" version-type="url">
 <send>
   <endpoint name="admin--Emailverification_APIproductionEndpoint_0">
      <http uri-template="  http://ws.cdyne.com/emailverify/emailverify.asmx" />
      <timeout>
         <duration> 360000 </duration>
         <responseAction>fault</responseAction>
      </timeout>
   </endpoint>
</send>
</api>






2. Socket timeout defined in the passthru-http.properties (APIMHOME\repository\conf\passthru-http.properties)



http.socket.timeout=60000000

• But According to the scenario we are talking here you can see endpoint timeout > http.socket.timeout since our default socket.timeout is 60000ms ..

•  It's important If the endpoint timeout > http.socket.timeout, whatever value we set in endpoint timeout is not getting applied, but the value of http.socket.timeout will be used in request timeouts. Basically, when endpoint timeout > http.socket.timeout, the engine will timeout the endpoint after http.socket.timeout, irrespective of the timeout action or timeout value we configured in endpoint level.

• So it is a must to configure http.socket timeout to higher value than the synapse global timeout or endpoint timeout values.

So I am increasing the socket timeout value here, adhering to the above condition ("http.socket.timeout=60000000" )

3. Global timeout defined in synapse.properties (\repository\conf\synapse.properties)This can’t be set per API level but when it’s applied it will affect globally for all API’s

synapse.global_timeout_interval=60000000

Note:

If you need any further assistance or have queries regarding the "WSO2 API Manager  : Configure timeouts"  Do not hesitate to comment below ....

Read More

WSO2 API Manager, What is the Difference, relation between handlers and mediators.

I’ve already discussed how to write a custom handler in my previous post, but say, you are having a use case which will mix up you to get a decision such as “should i achieve this by writing custom handler? Or should i write a custom mediator instead of handler?”  for getting a decision in a such situations hope this post will helps you...

One main difference between a class mediator and a handler is that handlers are executed in both request flow and response flow, and you can write 2 logics for those 2 cases in the same handler. But a class mediator has only a single section (i.e. mediate() method). When you engage a class mediator in a sequence, you can decide if you want to put it in request flow or response flow, or in both.

If your logic is not complex, you can use existing mediators instead of writing a class mediator. In that case, you don't need to write any java code.

Existing handlers are executed first in the request flow. Mediation sequences are executed after that. But if you write a custom handler, you can put it after mediation sequences as well, because mediation sequences are also executed by a handler (APIManagerExtensionHandler). So if you place your handler after APIManagerExtensionHandler(which you can find in <APIM HOME>/repository/deployment/server/synapse-configs/default/api/apiconfiguration file), it will execute after mediation sequences.(figure 1.0)

Figure 1.0

The most important point is both mediation sequences and handlers are code extensions that run after the gateway receives a response or request.

According to my findings, here are the primary differences between handlers and mediation sequences. Using one over the other should be determined by your specific requirements.

Custom Handlers

• Are strictly "per-API," though they can be added to each API via inclusion in the velocity-template.xml file.
• Can be executed in any order with respect to other handlers.
• Do not require sequences in addition to the inclusion of the handler within the API definition sequence. All of the tasks must be contained in Java code.
• Handlers extend the org.apache.synapse.rest.AbstractHandler class,requiring implementation of AbstractHandler.handleRequest and AbstractHandler.handleResponse

Mediation Sequences

• Can be configured to be global or API specific.
• Can be executed in any order with respect to other mediation sequences, but cannot mediate before other handlers unless all other mediators also do so (unless you write a custom mediation handler).
• Allow you to invoke other predefined mediators within an XML tree to describe the mediation tasks. Unless the predefined mediators (provided by WSO2) do not satisfy your requirements, you won't have to write any custom code.
• Mediators extend org.apache.synapse.mediators.AbstractMediator class and require implementing AbstractMediator.mediate

Further reading links

• Writing Custom Handlers
• Adding Mediation Extensions

what i have written above just scratches the surface. I am by no means an expert on this and am keen to learn from your experience

Read More

SOAP and REST

SOAP and REST as a web service

One of my friend asked me a question today "why would anyone choose SOAP(Simple Object Access Protocol) instead REST(Representative State Transfer)"? i thought about it for a minute and honestly answered that i haven't ever come a cross a reason. while i feel unsatisfied about my knowledge on web services i did some homework and here's my summery on rest vs soap

Overview

REST(Representative State Transfer)

REST is web standards based architecture and uses HTTP Protocol for data communication. REST Server simply provides access to resources and REST client accesses and presents the resources. It is more like a browser. It's a generic client that knows how to use a protocol and standardized methods, and an application has to fit inside that. You don't violate the protocol standards by creating extra methods, you leverage on the standard methods and create the actions with them on your media type. If done right, there's less coupling(less degree of inter dependence each other), and changes can be dealt with more gracefully. A client is supposed to enter a REST service with zero knowledge of the API, except for the entry point and the media type.

I think following points will help you out to understand more about REST and how it differs from SOAP

• REST is protocol independent. actually REST is an architectural style not a protocol, It's not coupled to HTTP. Pretty much like you can follow an ftp link on a website, a REST application can use any protocol for which there is an standardized URI scheme.

• RESTful Web Services are fast because there is no strict specification like SOAP. It consumes less bandwidth and resource.

• REST concepts are referred to as resources. A representation of a resource must be stateless. It is represented via some media type. Some examples of media types include XML, JSON, and RDF. Resources are manipulated by components. Components request and manipulate resources via a standard uniform interface. In the case of HTTP, this interface consists of standard HTTP ops e.g. GET, PUT, POST, DELETE.

SOAP(Simple Access Object protocol)

SOAP is a XML-based protocol for accessing web service.It specifies exactly how to encode an HTTP header and an XML file so that a program in one computer can call a program in another computer and pass along information. SOAP also specifies how the called program can return a response. Despite its frequent pairing with HTTP, SOAP supports other transport protocols as well.

• SOAP messages are encrypted and digitally signed at the message level, SSL works at the transport level. SSL is prone to hacking because it uses Asymmetric Encryption (public and private keys). SOAP uses Symmetric encryption that is much more difficult to break. SOAP requires XML because it is digitally signed and encrypted.

• SOAP requires more bandwidth and resource than REST.

• SOAP is typically much slower than other types of middleware standards, including CORBA. This due to the fact that SOAP uses a verbose XML format. You need to fully understand the performance limitations before building applications around SOAP.

• SOAP has different levels of support, depending upon the programming language supported. For example, SOAP support within Python and PHP is not as strong as it is within Java and .NET.

Read More

Writing Custom Handler..

How to write custom handler for API Manager 1.10.0  from the scratch

Users need to provide OAuth2 bearer token to invoke APIs under an application. Its the default authentication mechanism provided by WSO2 API Manager. But we can extend it to support any of the authentication mechanism other than the bearer token authentication.

In this post i'm going to explain  how you can write a custom handler and How to apply it to the API Manager 1.10.0

First we need to create a new maven project from java IDE. For this article i am using eclipse since it is my favorite IDE.

• Open eclipse and create new project and choose new maven project in wizard, you can give any artifactId and groupId as you prefer.

• For my project i'm giving Artifact Id and group Id as following for this as i mentioned above  you can give any name

• We can write our own authentication handler class by extending 'org.apache.synapse.rest.AbstractHandler' class

 package com.wso2.CustomHeader.CustomeHandler;
 import org.apache.synapse.MessageContext;
 import org.apache.synapse.core.axis2.Axis2MessageContext;
 import org.apache.synapse.rest.AbstractHandler;
 import java.util.Map;
 public class CustomAPIAuthenticationHandler extends AbstractHandler{
  public boolean handleRequest(MessageContext messageContext) {
     try {
       if (authenticate(messageContext)) {
         return true;
       }
     } catch (Exception e) {
       e.printStackTrace();
     }
     return false;
   }
   public boolean handleResponse(MessageContext messageContext) {
     return true;
   }
   public boolean authenticate(MessageContext synCtx) {
     Map headers = getTransportHeaders(synCtx);
     String authHeader = getAuthorizationHeader(headers);
     if (authHeader.startsWith("userName")) {
       return true;
     }
     return false;
   }
   private String getAuthorizationHeader(Map headers) {
     return (String) headers.get("Authorization");
   }
   private Map getTransportHeaders(MessageContext messageContext) {
     return (Map) ((Axis2MessageContext) messageContext).getAxis2MessageContext().
         getProperty(org.apache.axis2.context.MessageContext.TRANSPORT_HEADERS);
   }
 }

• Here i attached my working .pom file

 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.wso2.CustomHeader</groupId>
  <artifactId>CustomeHandler</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>
  <repositories>
     <repository>
       <id>wso2-nexus</id>
       <name>WSO2 internal Repository</name>
       <url>
         http://maven.wso2.org/nexus/content/groups/wso2-public/
       </url>
       <releases>
         <enabled>true</enabled>
         <updatePolicy>daily</updatePolicy>
         <checksumPolicy>fail</checksumPolicy>
       </releases>
     </repository>
   </repositories>
  <name>CustomeHandler</name>
  <url>http://maven.apache.org</url>
  <dependencies>
   <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>3.8.1</version>
    <scope>test</scope>
   </dependency>
   <dependency>
       <groupId>org.wso2.carbon</groupId>
       <artifactId>org.wso2.carbon.core</artifactId>
       <version>4.4.3</version>
     </dependency>
     <dependency>
       <groupId>org.apache.synapse</groupId>
       <artifactId>synapse-core</artifactId>
       <version>${synapse.version}</version>
     </dependency>
     <dependency>
       <groupId>org.wso2.carbon.mediation</groupId>
       <artifactId>org.wso2.carbon.mediation.registry</artifactId>
       <version>${carbon.mediation.version}</version>
     </dependency>
     <dependency>
       <groupId>com.googlecode.json-simple.wso2</groupId>
       <artifactId>json-simple</artifactId>
       <version>${googlecode.json-simple.version}</version>
     </dependency>
     <dependency>
       <groupId>org.wso2.carbon.apimgt</groupId>
       <artifactId>org.wso2.carbon.apimgt.impl</artifactId>
       <version>${api.mgt.version}</version>
     </dependency>
     <dependency>
       <groupId>io.swagger</groupId>
       <artifactId>swagger-parser</artifactId>
       <version>${swagger.version}</version>
     </dependency>
     <dependency>
       <groupId>org.wso2.carbon</groupId>
       <artifactId>org.wso2.carbon.logging</artifactId>
       <version>4.4.3</version>
     </dependency>
     <dependency>
       <groupId>com.fasterxml.jackson.core</groupId>
       <artifactId>jackson-annotations</artifactId>
       <version>2.7.2</version>
     </dependency>
     <dependency>
       <groupId>com.fasterxml.jackson.core</groupId>
       <artifactId>jackson-core</artifactId>
       <version>2.7.2</version>
     </dependency>
     <dependency>
       <groupId>com.fasterxml.jackson.core</groupId>
       <artifactId>jackson-databind</artifactId>
       <version>2.7.2</version>
     </dependency>
  </dependencies>
  <properties>
   <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
   <!-- Misc Versions -->
     <synapse.version>2.1.5-wso2v2</synapse.version>
     <carbon.mediation.version>4.5.1</carbon.mediation.version>
     <swagger.version>1.0.17</swagger.version>
     <api.mgt.version>5.0.3</api.mgt.version>
     <googlecode.json-simple.version>1.1.wso2v1</googlecode.json-simple.version>
     <javax.xml.stream.imp.pkg.version>[1.0.1, 1.1.0)</javax.xml.stream.imp.pkg.version>
     <axis2.osgi.version.range>[1.6.1.wso2v11, 1.7.0)</axis2.osgi.version.range>
     <axiom.osgi.version.range>[1.2.11.wso2v6, 1.3.0)</axiom.osgi.version.range>
     <carbon.platform.package.import.version.range>[4.4.1, 4.5.0)
     </carbon.platform.package.import.version.range>
     <carbon.registry.imp.pkg.version>[1.0.1, 2.0.0)</carbon.registry.imp.pkg.version>
     <carbon.apimgt.imp.pkg.version>[5.0.0, 6.0.0)</carbon.apimgt.imp.pkg.version>
     <javax.xml.soap.imp.pkg.version>[1.0.0, 1.1.0)</javax.xml.soap.imp.pkg.version>
     <imp.pkg.version.axis2>[1.6.1.wso2v14, 1.7.0)</imp.pkg.version.axis2>
     <imp.pkg.version.carbon.throttle>[4.2.1, 4.3.0)</imp.pkg.version.carbon.throttle>
     <imp.pkg.version.carbon.base>[1.0.0, 1.1.0)</imp.pkg.version.carbon.base>
     <carbon.mediation.imp.pkg.version>[4.0.0, 5.0.0)</carbon.mediation.imp.pkg.version>
     <imp.pkg.version.org.wso2.carbon.base>[1.0.0, 1.1.0)</imp.pkg.version.org.wso2.carbon.base>
     <imp.pkg.version.org.wso2.carbon.user.api>[1.0.1, 1.2.0)
     </imp.pkg.version.org.wso2.carbon.user.api>
     <imp.pkg.version.axiom>[1.2.11.wso2v6, 1.3.0)</imp.pkg.version.axiom>
     <carbon.identity.imp.pkg.version>[5.0.0, 6.0.0)</carbon.identity.imp.pkg.version>
  </properties>
   <build>
     <plugins>
       <plugin>
         <groupId>org.apache.maven.plugins</groupId>
         <artifactId>maven-compiler-plugin</artifactId>
         <version>2.0</version>
         <configuration>
           <encoding>UTF-8</encoding>
           <source>1.7</source>
           <target>1.7</target>
         </configuration>
       </plugin>
       <!--  <plugin>
           <groupId>org.apache.axis2</groupId>
           <artifactId>axis2-java2wsdl-maven-plugin</artifactId>
           <executions>
             <execution>
               <goals>
                 <goal>java2wsdl</goal>
               </goals>
             </execution>
           </executions>
           <configuration>
             <className>
               org.wso2.carbon.apimgt.gateway.service.APIGatewayAdmin
             </className>
           </configuration>
         </plugin>-->
       <plugin>
         <groupId>org.apache.felix</groupId>
         <artifactId>maven-scr-plugin</artifactId>
         <version>1.7.2</version>
         <executions>
           <execution>
             <id>generate-scr-scrdescriptor</id>
             <goals>
               <goal>scr</goal>
             </goals>
           </execution>
         </executions>
       </plugin>
       <plugin>
         <groupId>org.apache.felix</groupId>
         <artifactId>maven-bundle-plugin</artifactId>
         <version>1.4.0</version>
         <extensions>true</extensions>
         <configuration>
           <instructions>
             <Bundle-SymbolicName>${project.artifactId}</Bundle-SymbolicName>
             <Bundle-Name>${project.artifactId}</Bundle-Name>
             <Private-Package></Private-Package>
             <Export-Package>
               com.wso2.header.handler.*;version="${project.version}"
             </Export-Package>
             <Import-Package>
               !com.wso2.header.handler.*;version="${project.version}",
               javax.cache,
               javax.naming,
               javax.sql,
               javax.xml.*;version="0.0.0",
               org.slf4j,
               org.w3c.dom,
               org.xml.sax,
               org.wso2.carbon.apimgt.api.*;version="${carbon.apimgt.imp.pkg.version}",
               org.wso2.carbon.apimgt.api.model.xsd;version="${carbon.apimgt.imp.pkg.version}",
               org.eclipse.equinox.http.helper,
               com.google.gson,
               org.apache.axis2.*; version="${imp.pkg.version.axis2}",
               org.apache.commons.*,
               org.apache.synapse.*,
               org.osgi.service.*,
               org.apache.commons.logging,
               org.apache.axiom.*; version="${imp.pkg.version.axiom}",
               org.wso2.carbon.utils;
               version="${carbon.platform.package.import.version.range}",
               org.wso2.carbon.registry.core.*;
               version="${carbon.registry.imp.pkg.version}",
               org.wso2.carbon.utils.*;
               version="${carbon.platform.package.import.version.range}",
               org.wso2.carbon.context;version="${carbon.platform.package.import.version.range}",
               org.wso2.carbon.user.core.*;version="${carbon.platform.package.import.version.range}",
               org.wso2.carbon.user.api;version="${imp.pkg.version.org.wso2.carbon.user.api}",
               org.wso2.carbon.um.ws.api.stub,
               org.wso2.carbon.registry.*;version="${carbon.registry.imp.pkg.version}",
               org.apache.axis2.rpc.receivers; version="${axis2.osgi.version.range}",
               org.apache.axiom.*; version="${axiom.osgi.version.range}",
               org.apache.axis2; version="${axis2.osgi.version.range}",
               org.apache.axis2.description; version="${axis2.osgi.version.range}",
               org.apache.axis2.engine; version="${axis2.osgi.version.range}",
               org.apache.axis2.rpc.receivers; version="${axis2.osgi.version.range}",
               org.apache.axis2.context; version="${axis2.osgi.version.range}",
               org.apache.axis2.transport.base,
               org.wso2.carbon.core;
               version="${carbon.platform.package.import.version.range}",
               org.wso2.carbon.registry.core.service;
               version="${carbon.registry.imp.pkg.version}",
               org.wso2.carbon.registry.api;
               version="${carbon.registry.imp.pkg.version}",
               org.wso2.carbon.apimgt.impl.*;
               version="${carbon.apimgt.imp.pkg.version}",
               javax.xml.soap; version="${javax.xml.soap.imp.pkg.version}",
               org.wso2.carbon.apimgt.api.*;
               version="${carbon.apimgt.imp.pkg.version}",
               org.apache.axis2.*; version="${imp.pkg.version.axis2}",
               javax.cache,
               javax.net.ssl,
               javax.xml.namespace,
               org.apache.commons.*,
               org.apache.synapse.*,
               org.wso2.carbon.registry.core.*;
               version="${carbon.registry.imp.pkg.version}",
               org.wso2.carbon.utils;
               version="${carbon.platform.package.import.version.range}",
               org.osgi.service.component,
               org.slf4j,
               org.wso2.carbon.apimgt.keymgt.stub.validator;
               version="${carbon.apimgt.imp.pkg.version}",
               org.wso2.carbon.sequences.stub.types,
               org.wso2.carbon.context,
               *;resolution:=optional
             </Import-Package>
             <DynamicImport-Package>*</DynamicImport-Package>
           </instructions>
         </configuration>
       </plugin>
     </plugins>
   </build>
 </project>

Build Solution if it is successfully build you can see the .jar file on target folder like following

Then you have to copy this jar file to <AM_HOME>/repository/components/lib  folder where <AM_HOME> is the root of the WSO2 API Manager distribution

You have to put the Jars correspond to external dependencies into classpath in order to make them available in the OSGI repository. For that you can copy those to libs directory.

Following articles will show you how to add external jar libraries to wso2 carbon based products[1],[2].

[1]http://wso2.com/library/knowledgebase/add-external-jar-libraries-wso2-carbon-based-products/

[2]Adding External Libraries

Engaging the custom handler

You can engage a custom handler to all APIs at once or only to selected APIs.

here i used first method engage custom handler to all APIs, so to do this we have to add following modification to velocity_template.xml file which is located on following path  <APIM_HOME>/repository/resources/api_templates/velocity_template.xml

 <handlers>
    <!-- <handler class="org.wso2.carbon.apimgt.gateway.handlers.security.CORSRequestHandler">
      <property name="inline" value="INLINE"/>
    </handler> -->
   <handler class="com.wso2.CustomHeader.CustomeHandler.CustomAPIAuthenticationHandler" />
     #foreach($handler in $handlers)
      #if(!($handler.className == "com.wso2.CustomHeader.CustomeHandler.CustomAPIAuthenticationHandler"))
       <handler xmlns="http://ws.apache.org/ns/synapse" class="$handler.className">
       #if($handler.hasProperties())
         #set ($map = $handler.getProperties() )
         #foreach($property in $map.entrySet())
           <property name="$!property.key" value="$!property.value"/>
         #end
       #end
       </handler>
      #end
     #end
 </handlers>

However, please note that these changes to velocity_template.xml won't have an effect on already published APIs. So your custom authentication handler will not be engaged in already published APIs, unless you republish them. To engage it with already published APIs, you need to republish those APIs.

• Login to publisher
• Select your API and click on Lifecycle tab
• Change the State to CREATED and click Update
• Again change the State to PUBLISHED and click Update

Please find sample code here...

Thanks

Read More
